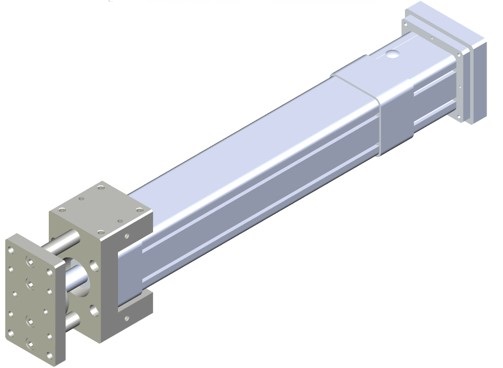

H-Guides Available

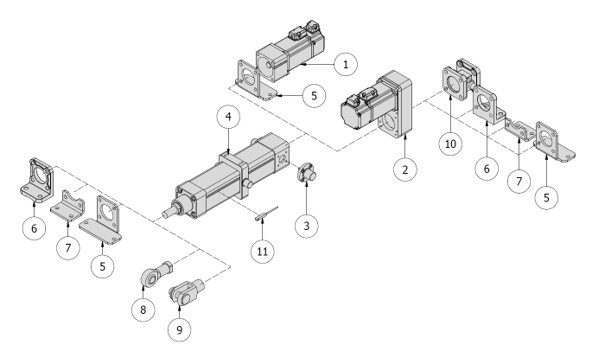

Many Accessories to Choose from

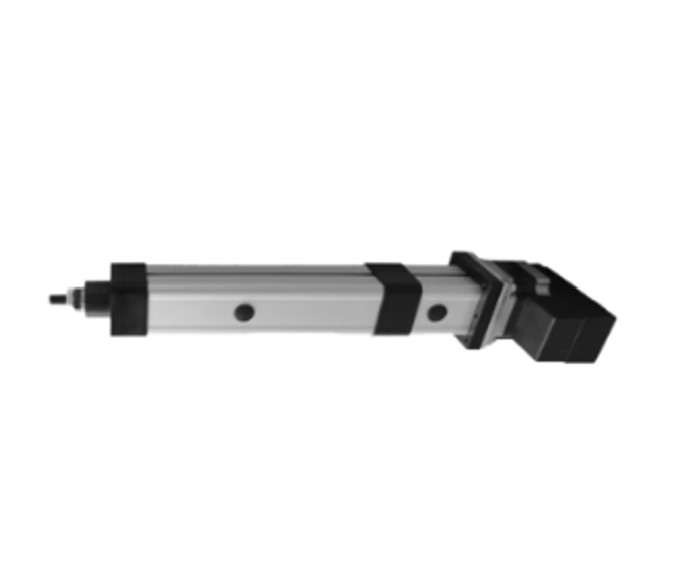

EM Series [Motorized ISO Pneumatic Dimensional Replacement]
Size 25 (10mm Screw DIA) to 63 (20mm Screw DIA)
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
Or Available with Servo or Stepper Motor Included. Must USE Fangtooth Drive.
Ball Screw Rod Style Actuators

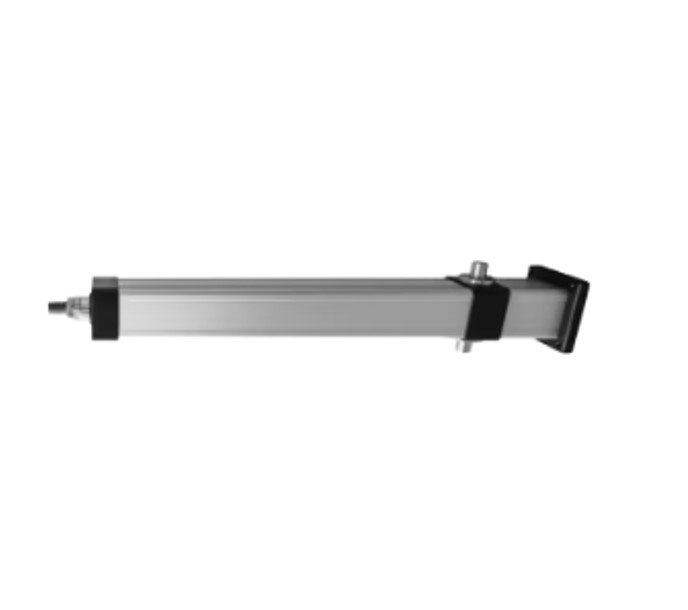

EF Series [High Force ISO Pneumatic Dim Replacement]
Size 50 (20mm Screw DIA) to 150 (63mm Screw DIA)
Ball Screw Rod Style Actuators
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
[Click Here for Quick Reference]

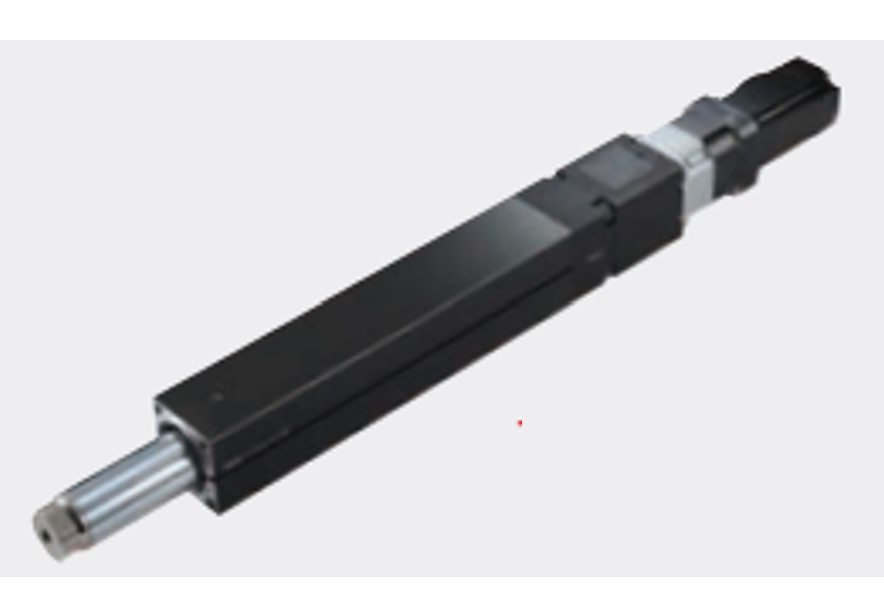

ETHU Series [High Force Planetary Short Stroke]
Up to 42 mm/s (1.65 in/s)
Up to 1200 kg Vertical Payload
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
Planetary Roller Screw Rod Style Actuators
[Click Here for Quick Reference]

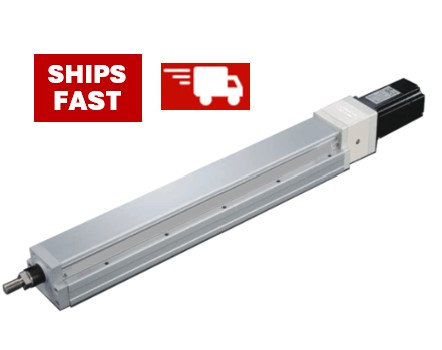

ETU Matrix Series [Guided Rod Cylinders]
ULTRA LIGHT
Size 04 (10mm Screw DIA) to 12 (16mm Screw DIA)
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
Ball Screw Rod Style Actuators
[Click Here for Quick Reference]

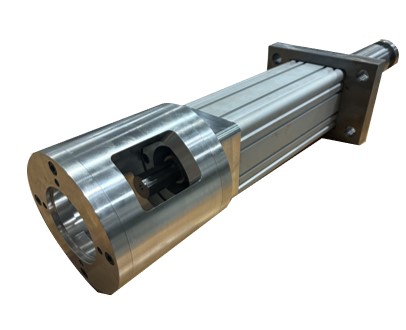

BIG-A Series [Automotive Duty]
Up to 1.27 m/s (50 in/s)
Up to 12,000 lbs continuous force
Up to 60,000 lbs press force
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
Ball Screw Rod Style Actuators
[Click Here for Quick Reference]

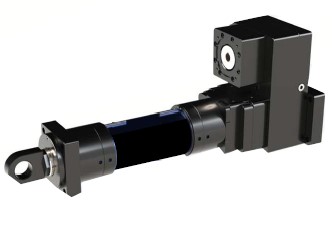

BIG-P Series [High Force Planetary Roller Screw Cylinder]
Up to 1.27 m/s (50 in/s)
From 7,500 lbs to 250,000 lbs continuous force
Ships with Servo Motor Mount and coupling, Right Angle or Parallel Drive.
Planetary Roller Screw Rod Style Actuators
Delivery
