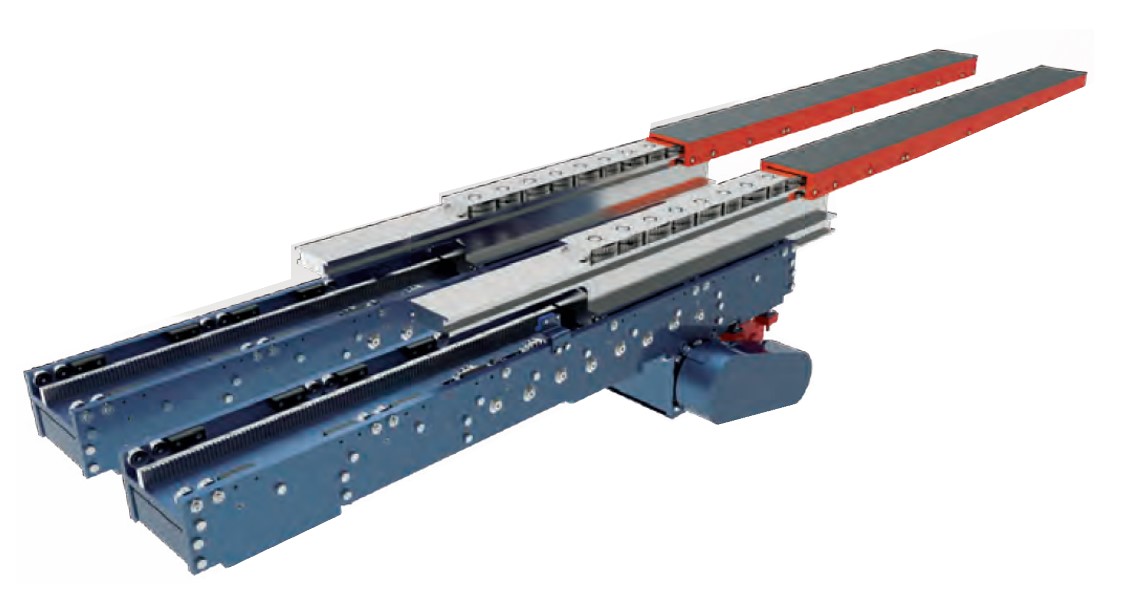

ASF-A1 Series
II Forks - Telescopic Depth 1
[Click Here for Quick Reference]
Up to 1500 kg = 3300 lbs /Stokes Up to 2100 mm = 6.9 feet
Short Stroke Deflections as low as 12mm weight dependent
Long Stroke Deflections as low as 23mm- 64mm weight dependent
ASF-T1 Series
II Forks - Telescopic Depth 1
[Click Here for Quick Reference]
Up to 4000 kg = 8800 lbs /Stokes Up to 2900 mm = 9.5 feet
Short Stroke Deflections as low as 4mm weight dependent
Long Stroke Deflections as low as 9mm- 36mm weight dependent

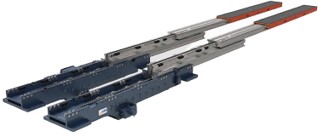

ASF-Z2 Series
II Forks - Telescopic Depth 2
[Click Here for Quick Reference]
Up to 2000 kg = 4400 lbs / Stokes Up to 3300 mm = 10.8 feet
Short Stroke Deflections as low as 12mm weight dependent
Long Stroke Deflections as low as 24mm- 55mm weight dependent

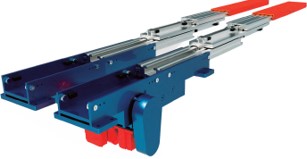

ASF-R3 Series
II Forks - Telescopic Depth 3
[Click Here for Quick Reference]
Up to 1200 kg = 2645 lbs / Stokes Up to 3750 mm = 12.3 feet
Short Stroke Deflections as low as 8mm weight dependent
Long Stroke Deflections as low as 27mm- 62mm weight dependent
[Click for Quick Ref]

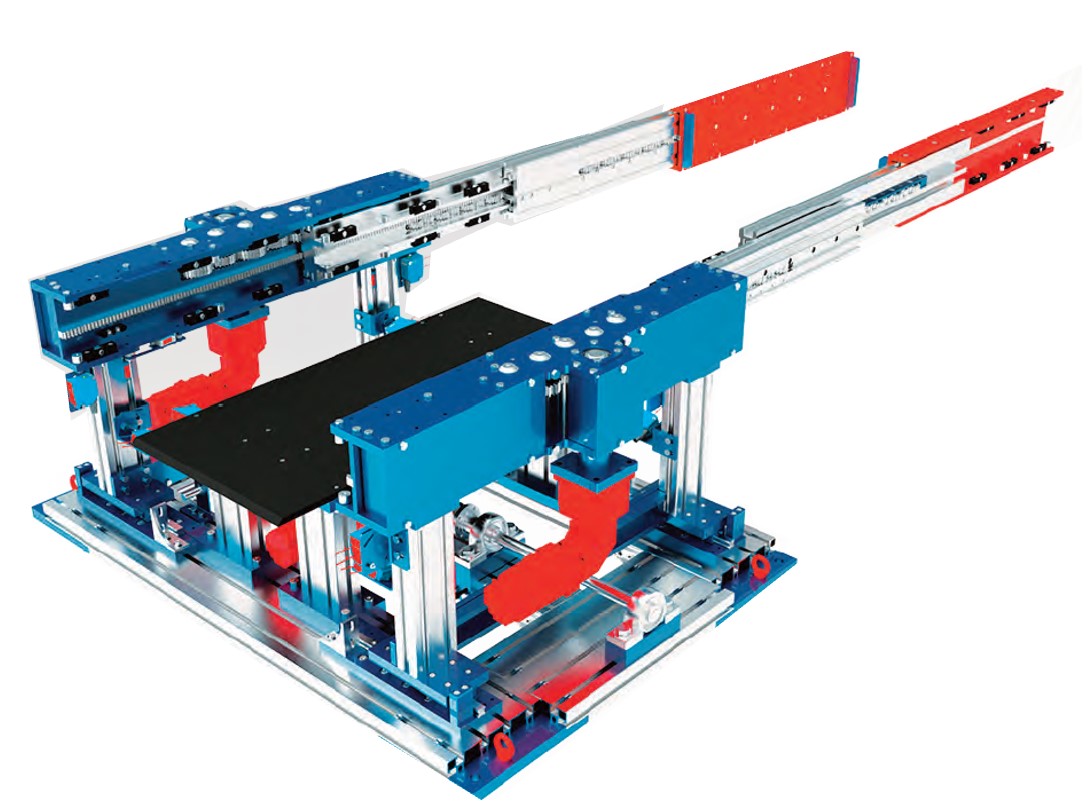

WIDE BODY SOLUTIONS
STAINLESS STEEL SOLUTIONS
PUSH PULL FORKS
EXTREME ENVIRONMENTS [DIRTY]
CARTON LOADING DEVICES
If the standard doesn't meet you requirement - Ask us anyway.
We always have a way!
We can offer specials & combinations or gearboxes with planetary gearhead options.
Give us a call!
