Fangtooth Multiaxis Systems

FINGLIDE MOVITRIX [Catalog Click Here]

FANGBOT CUSTOM MULTIAXIS  [Catalog Click Here]

FANGBOT 1400 X-X' Single Axis -> BELT DRIVEN

MODEL: F1BT-XX1400-N60BLT     [ MAX 5850 mm STROKE ]

1400 lb payload, Up to 3 m/s duty cycle dependent

FANGBOT 3800 X-X' Single Axis -> BELT DRIVEN

MODEL: F1BT-XX3800-N80BLT     [ MAX 5750 mm STROKE ]

3800 lb payload, Up to 4 m/s duty cycle dependent

FANGBOT 4500 X-X' Single Axis -> BELT DRIVEN

MODEL: F1BT-XX4500-N120BLT     [ MAX 5650 mm STROKE ]

4500 lb payload, Up to 4 m/s duty cycle dependent

FANGBOT 2400R X-X' Single Axis -> RACK DRIVEN

MODEL: F1BT-XX2400R-2560     [ MAX 5650 mm STROKE ]

2400 lb payload, Up to 8 m/s duty cycle dependent

FANGBOT 100BSD XY -> BALL SCREW DRIVEN

MODEL: F2BT-XY100-120BSA     [ MAX-X 1500mm / MAX-Y 750 mm ]

100 lb payload, Up to 750 mm/s duty cycle dependent

FANGBOT 200BSD XY -> BALL SCREW DRIVEN

MODEL: F2BT-XY200-160BSA     [ MAX-X 2500mm / MAX-Y 1000mm ]

100 lb payload, Up to 750 mm/s duty cycle dependent

FANGBOT 50BLT XY -> BELT DRIVEN

MODEL: F2BT-XY050-090BLT     [ MAX-X 2000mm / MAX-Y 350mm ]

50 lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 100BLT XY -> BELT DRIVEN

MODEL: F2BT-XY100-120BLT     [ MAX-X 4000mm / MAX-Y 500mm ]

100 lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 200BLT XY -> BELT DRIVEN

MODEL: F2BT-XY200-160BLT     [ MAX-X 5650mm / MAX-Y 500mm ]

200 lb payload, Up to 1.5 m/s duty cycle dependent

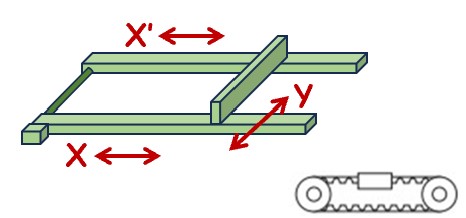

FANGBOT 250BLT XXY -> BELT DRIVEN

MODEL: F2BT-XXY250-69BLT     [ MAX-X 5850mm / MAX-Y 1200mm ]

250lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 500BLT XXY -> BELT DRIVEN

MODEL: F2BT-XXY500-812BLT     [ MAX-X 5750mm / MAX-Y 1500mm ]

500lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 750BLT XXY -> BELT DRIVEN

MODEL: F2BT-XXY750-1216BLT     [ MAX-X 5650mm / MAX-Y 2000mm ]

750lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 100BSD XZ  -> BALL SCREW DRIVEN

MODEL: F2BT-XZ100-120BSA     [ MAX-X 1500mm / MAX-Y 750mm ]

100 lb payload, Up to 750 mm/s duty cycle dependent

FANGBOT 200BSD XZ  -> BALL SCREW DRIVEN

MODEL: F2BT-XZ200-160BSA     [ MAX-X 2500mm / MAX-Y 1000mm ]

200 lb payload, Up to 750 mm/s duty cycle dependent

FANGBOT 50BLT XZ  -> BELT DRIVEN

MODEL: F2BT-XZ050-090BLT     [ MAX-X 2000mm / MAX-Y 750mm ]

50lb payload, Up to 4 m/s duty cycle dependent

FANGBOT 100BLT XZ  -> BELT DRIVEN

MODEL: F2BT-XZ100-120BLT     [ MAX-X 4000mm / MAX-Y 1000mm ]

100lb payload, Up to 4 m/s duty cycle dependent

FANGBOT 250BLT XZ  -> BELT DRIVEN

MODEL: F2BT-XZ250-160BLT     [ MAX-X 5650mm / MAX-Y 1250mm ]

250lb payload, Up to 4 m/s duty cycle dependent

FANGBOT 1200R XZ  -> RACK DRIVEN

MODEL: F2BT-XZ1200-2560     [ MAX-X 100 m / MAX-Y 1250mm ]

1200lb payload, Up to 500 mm/s duty cycle dependent

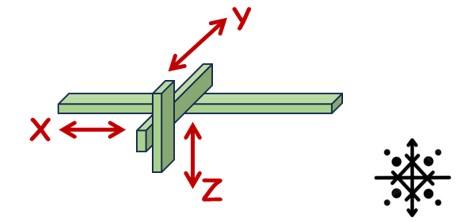

FANGBOT 100BSD XYZ  -> BALL SCREW DRIVEN

MODEL: F3BT-XYZ100-120BSA     [ MAX-X 1500mm / MAX-YZ 300mm ]

100 lb payload, Up to 300 mm/s duty cycle dependent

FANGBOT 200BSD XYZ  -> BALL SCREW DRIVEN

MODEL: F3BT-XYZ200-1216BSA     [ MAX-X 2500mm / MAX-YZ 500mm ]

200 lb payload, Up to 300 mm/s duty cycle dependent

FANGBOT 50M XYZ  -> XY BELT / Z BALL SCREW DRIVEN

MODEL: F3BT-XYZ050-120M     [ MAX-X 4000mm / Y 300mm / Z 500mm]

50lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 150M XYZ  -> XY BELT / Z BALL SCREW DRIVEN

MODEL: F3BT-XYZ150-160M     [ MAX-X 5650mm / Y 300mm / Z 500mm]

150lb payload, Up to 1.5 m/s duty cycle dependent

FANGBOT 50M XXYYZ  -> XY BELT / Z BALL SCREW DRIVEN

MODEL: F3BT-XXYYZ050-6812M     [ MAX-X 5500mm / Y 180mm / Z 1250mm]

50lb payload, Up to 500 mm/s duty cycle dependentt

FANGBOT 200M XXYYZ  -> XY BELT / Z BALL SCREW DRIVEN

MODEL: F3BT-XXYYZ200-812M     [ MAX-X 5400mm / Y 3500mm / Z 1100mm]

200lb payload, Up to 500 mm/s duty cycle dependent

FANGBOT 350M XXYYZ  -> XY BELT / Z BALL SCREW DRIVEN

MODEL: F3BT-XXYYZ350-1216M     [ MAX-X 5300mm / Y 3500mm / Z 1500mm]

350lb payload, Up to 500 mm/s duty cycle dependent

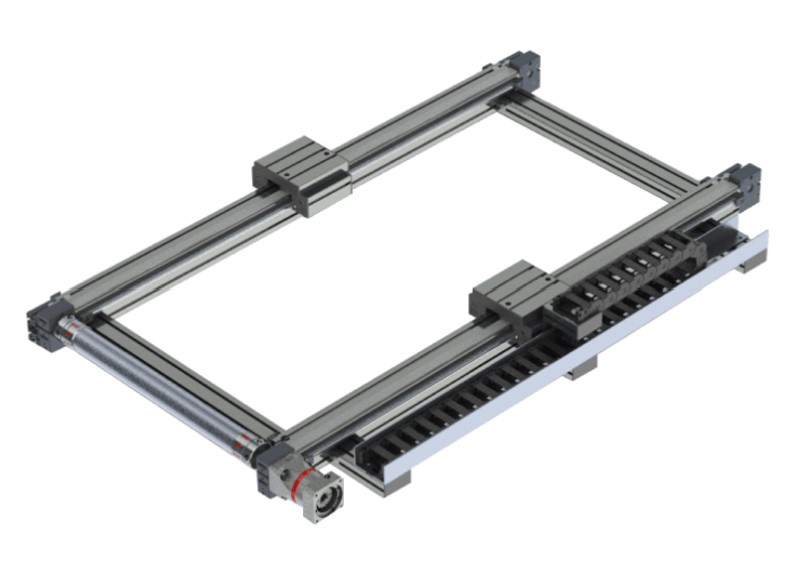

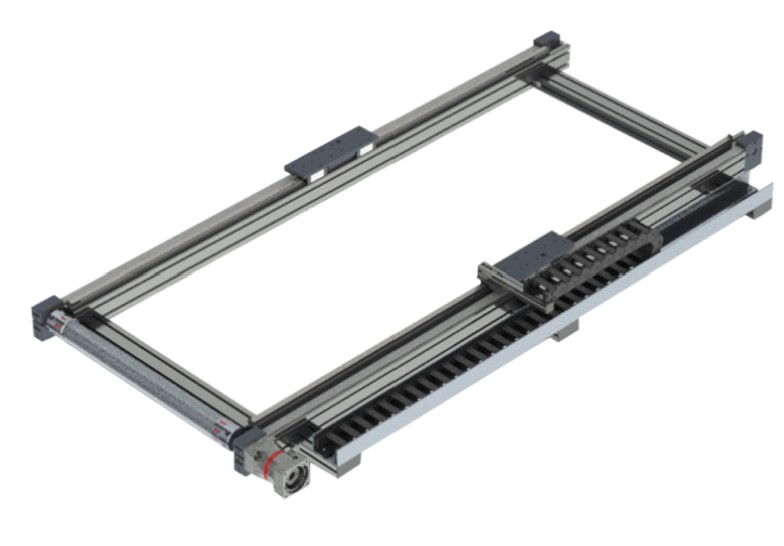

MOVITRIX 400C X-X'  -> BELT DRIVEN

MODEL: M1BT-XX400C     [ MAX-X 18 m - Spacing max 4 m]

400lb payload, Up to 5 m/s duty cycle dependent

MOVITRIX 1000C X-X'  -> BELT DRIVEN

MODEL: M1BT-XX1000C     [ MAX-X 18 m - Spacing max 4 m]

1000lb payload, Up to 5 m/s duty cycle dependent

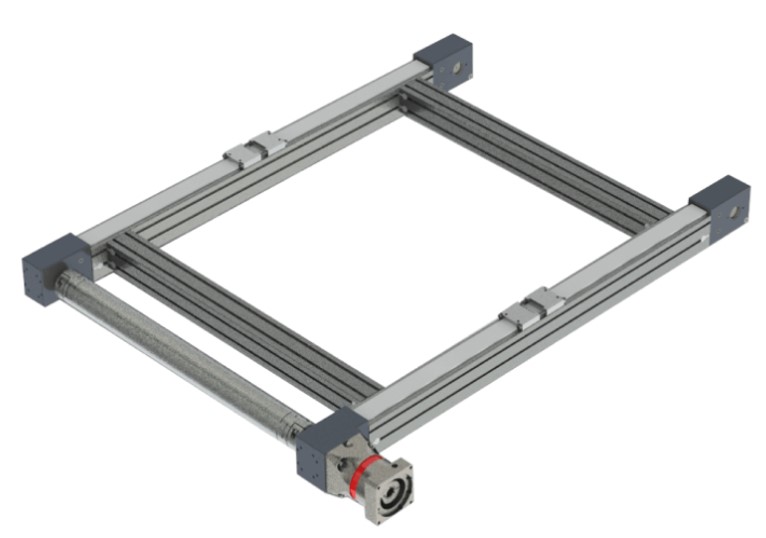

MOVITRIX 2500B X-X'  -> BELT ONLY - NOT GUIDED

MODEL: M1BT-XX2500B     [ MAX-X 18 m - Spacing max 4 m]

2500lb payload, Up to 5 m/s duty cycle dependent

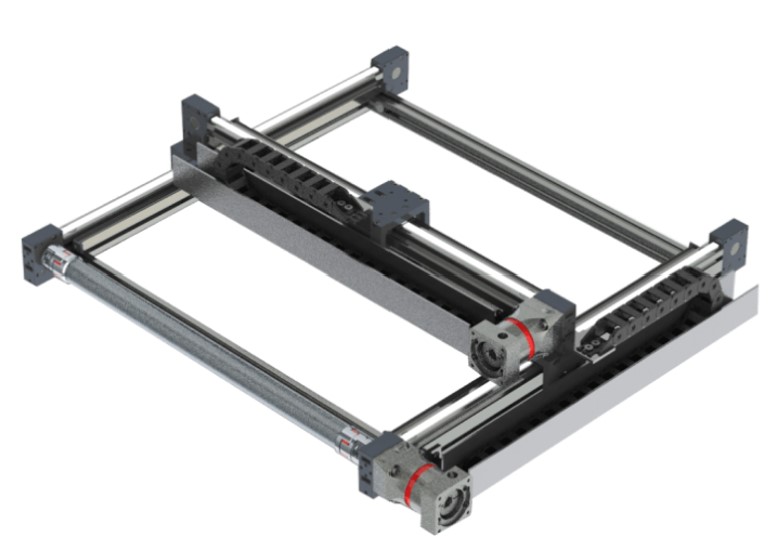

MOVITRIX 20LG XY  -> BELT DRIVEN

MODEL: M2BT-XY020LG     [ MAX-X 18 m / Y 5850mm ]

20lb payload, Up to 3 m/s duty cycle dependent

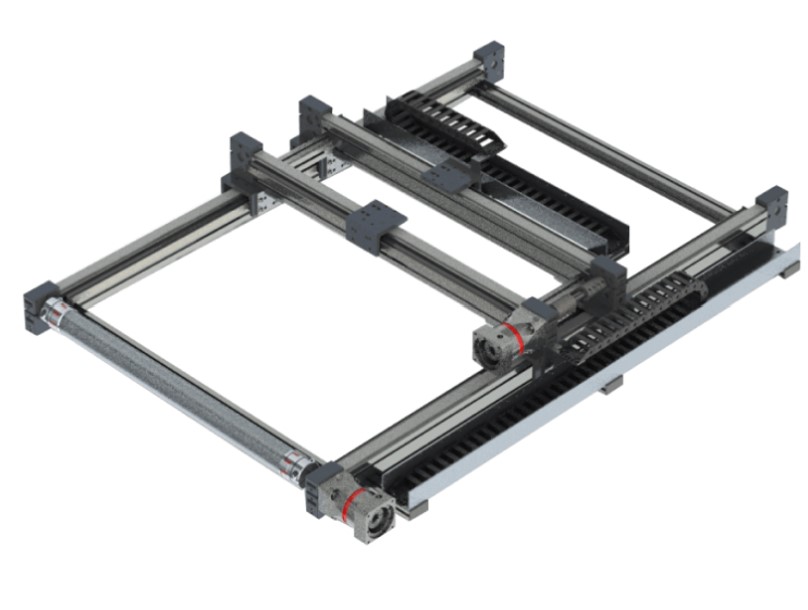

MOVITRIX 50LG XY  -> BELT DRIVEN

MODEL: M2BT-XY050LG     [ MAX-X 18 m / Y 5850mm ]

50lb payload, Up to 3 m/s duty cycle dependent

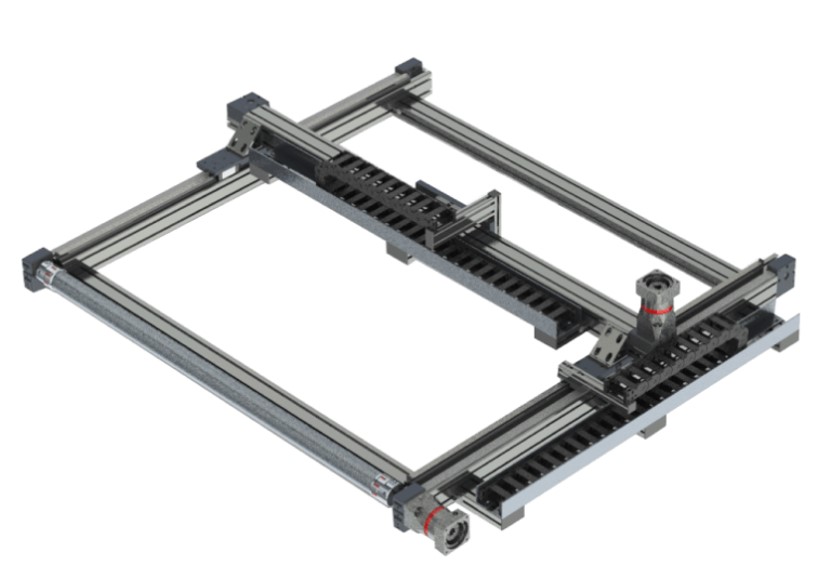

MOVITRIX 500LG XY  -> BELT DRIVEN

MODEL: M2BT-XY500LG     [ MAX-X 18 m / Y 5850mm ]

500lb payload, Up to 3 m/s duty cycle dependent

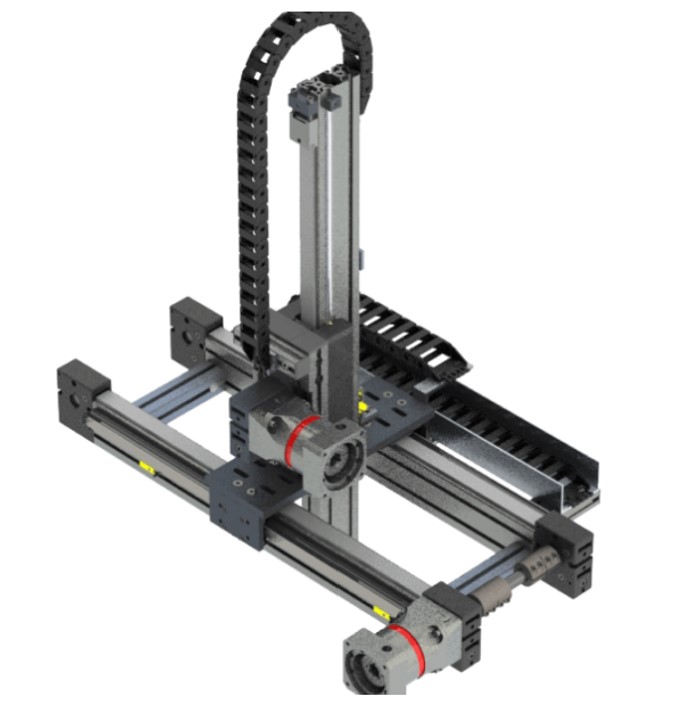

MOVITRIX 50LG XZ  -> BELT DRIVEN

MODEL: M2BT-XZ50LG     [ MAX-X 18 m / Z 5850mm ]

50lb payload, Up to 2 m/s duty cycle dependent

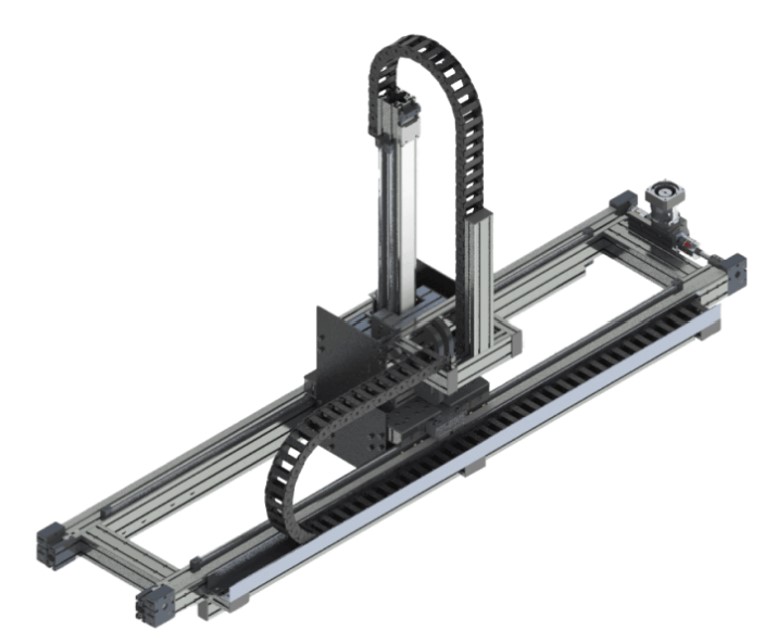

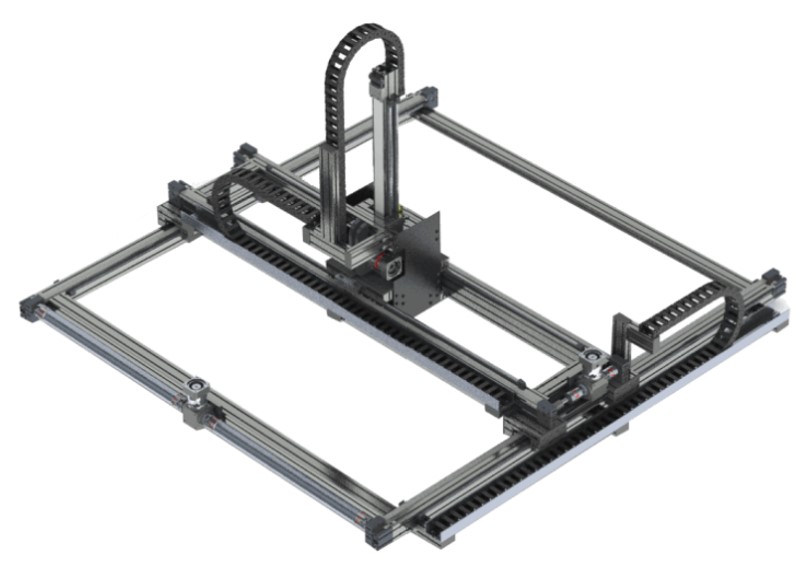

MOVITRIX 300LG XZ  -> BELT DRIVEN

MODEL: M2BT-XZ300LG     [ MAX-X 18 m / Z 5850mm ]

300lb payload, Up to 3 m/s duty cycle dependent

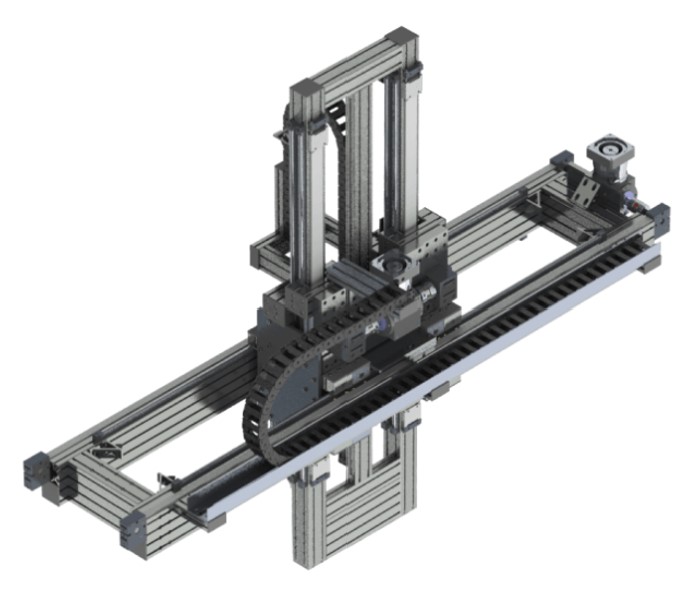

MOVITRIX 900LG XZ  -> BELT DRIVEN

MODEL: M2BT-XZ900LG     [ MAX-X 18 m / Z 5850mm ]

900lb payload, Up to 3 m/s duty cycle dependent

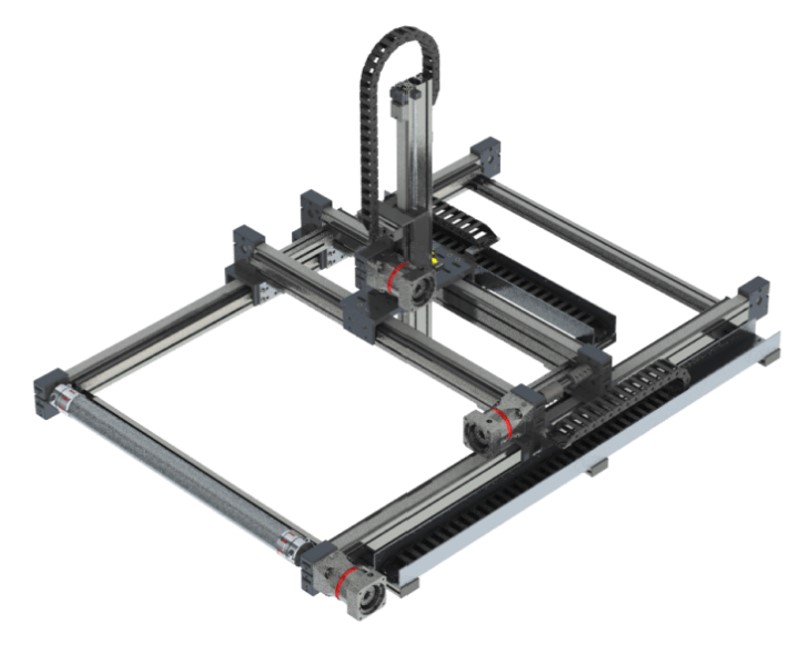

MOVITRIX 25LG XYZ  -> BELT DRIVEN

MODEL: M3BT-XYZ025LG     [ MAX-X 18 m / Y 4 m / Z 5850mm ]

25lb payload, Up to 3 m/s duty cycle dependent

MOVITRIX 125LG XYZ  -> BELT DRIVEN

MODEL: M3BT-XYZ125LG     [ MAX-X 18 m / Y 4 m / Z 5850mm ]

125lb payload, Up to 3 m/s duty cycle dependent.

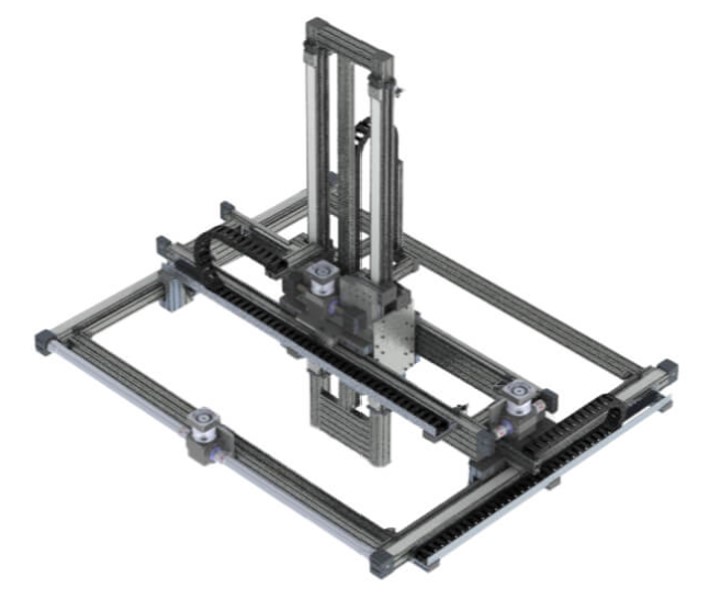

MOVITRIX 900LG XYZ  -> BELT DRIVEN

MODEL: M3BT-XYZ900LG     [ MAX-X 18 m / Y 4 m / Z 5850mm ]

900lb payload, Up to 2 m/s duty cycle dependent

If the standard doesn't meet you requirement - Ask us anyway.

We always have a way!

We can offer specials & combinations or gearboxes with planetary gearhead options.

  Give us a call!
